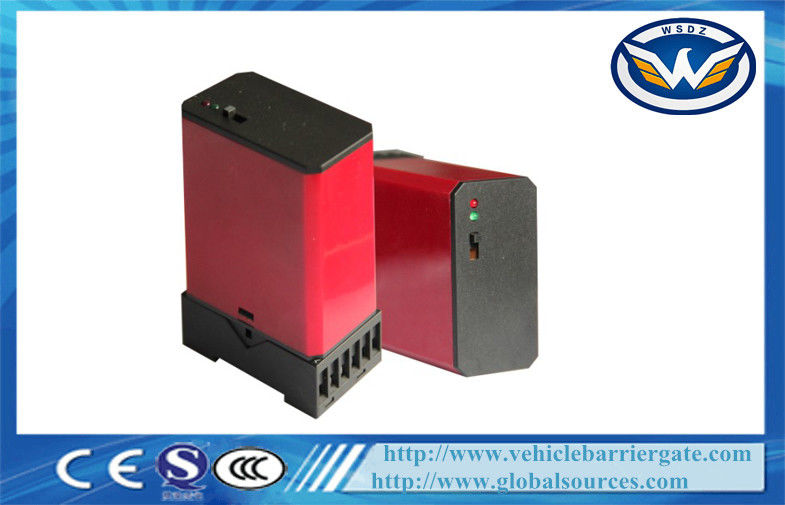

Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor
Place of Origin | China |
---|---|
نام تجاری | WONSUN |
گواهی | CE, ISO, SGS |
Model Number | WSTP-157 |
مقدار حداقل تعداد سفارش | 1pc |
قیمت | negotiation |
جزئیات بسته بندی | در قرار دادن حباب بسته بندی شده در مرحله اول و سپس مقوا را برای بسته بندی بیرونی تقویت شده. |
زمان تحویل | 3-7 روز کاری پس از دریافت پرداخت خود را |
شرایط پرداخت | T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره، |
قابلیت ارائه | 1000 مجموعه / ماه |
Contact me for free samples and coupons.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor | Power Suppply DC | 24V, 12V |
---|---|---|---|
Model Number | WSTV-410 Vehicle Loop Detector | Dimensions | 78x40x108 mm (WxHxL) |
Reaction time | 100ms | Output Signal Type | Exist Pulse |
برجسته | car loop detector,sliding gate rack,sliding gate rack |
Vehicle Single Loop Detector for Digital Inductive Sliding Gate Motor
Application Scope: |
♦ Parking lot entrances vehicle detection
|
Main Features: |
Reset Switch. Pressing the reset switch enables the detector to be manually reset during commissioning and
|
Technical Data |
Supply voltage: | 220V AC , 115V AC,24VDC/AC,12V DC/AC ( See the label on the detector) |
|||||||||||||||||||
Voltage tolerance AC | +10% / -15% | |||||||||||||||||||
Voltage tolerance DC | ±15% | |||||||||||||||||||
Power Consumption | 4.5VA | |||||||||||||||||||
Output relays | 240V/5A | |||||||||||||||||||
Operating temperature | -220°C to +65°C | |||||||||||||||||||
Storage temperature | -40°C to +85°C | |||||||||||||||||||
Frequency range | 20 kHz to 170 kHz | |||||||||||||||||||
Reaction time | 100ms | |||||||||||||||||||
Signal holding time | Unlimited | |||||||||||||||||||
Sensitivity | Adjustable in 3 increments | |||||||||||||||||||
Loop inductance | Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH |
|||||||||||||||||||
Loop connection wiring | Maximum length 20 meters, twisted at least 20 times per meter |
|||||||||||||||||||
Size of Housing | 78x40x108 mm (L x W x H) |
