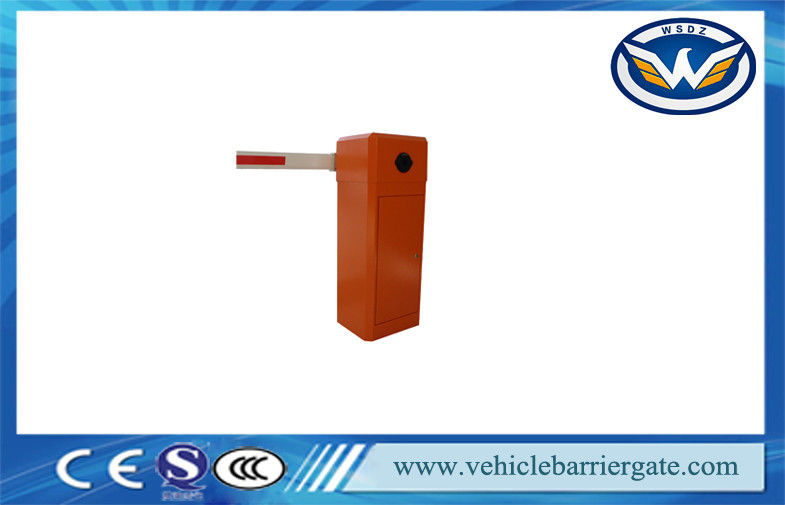

Parking System Automatic Boom Barrier Gate System , CE ISO SGS Approvals

محل منبع China
نام تجاری WONSUN
گواهی CE, ISO, SGS
شماره مدل WST-1151
مقدار حداقل تعداد سفارش 1pc
قیمت negotiation
جزئیات بسته بندی Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
زمان تحویل 3-7 روز کاری پس از دریافت پرداخت خود را
شرایط پرداخت T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره،
قابلیت ارائه 1000 مجموعه / ماه

Contact me for free samples and coupons.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
جزئیات محصول
Housing dimension 320 * 280 * 935 mm Feature limit switch
Housing material 2mm cold roller steel plate Open / close time 0.6s,1s, 1.8s, 3s, 6s
Power supply AC 220V / 110V Max boom length 6m
برجسته

,

,

electric boom barrier

پیام بگذارید
توضیحات محصول

 Parking System Automatic Boom Barrier Gate System , CE ISO SGS Approvals

Quick Detail:

  1. Name:  Automatic boom barrier
  2. Application: Enterprise door
  3. Speed:1s,3s,6s
  4. Feature: Limit switch
  5. Rated Power:80W
  6. Certificate:CE, ISO, SGS
  7. Net Weight: 60KG
  8. Voltage:AC220V, AC110V


Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1151

Straight boom

4.5 m

3 seconds

WST1151 Straigjht boom 3m 1s and 1.8s








Applications:

Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.

Specifications



Model WST-1151
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 6meters
Speed 1S,3s,6s
Net weight 60kgs


Functions & Features:

1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Reversing on obstacle
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible


Applications:

Automatic boom barrier adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.

With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Our Car Park Barriers Packing List


Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole
