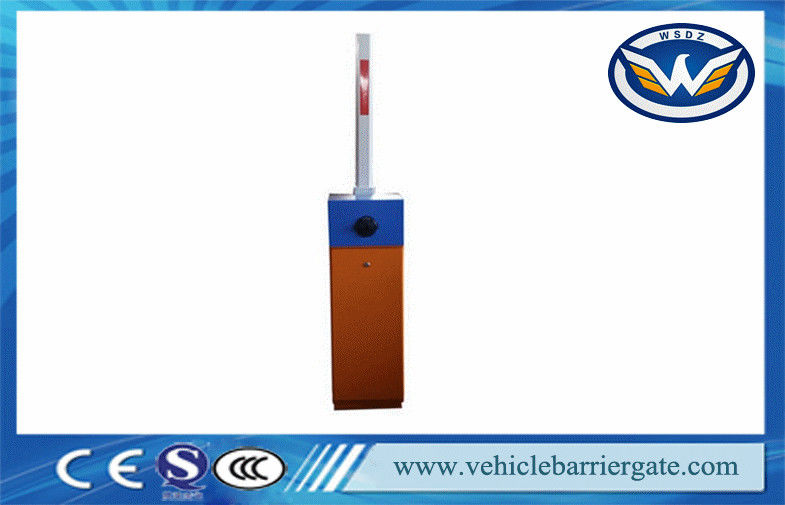

Access Control 110 / 220V Vehicle Barrier Gate Parking Barrier Arm Gate

نام تجاری WONSUN
گواهی CE, ISO, SGS
شماره مدل DZTP-128-B
مقدار حداقل تعداد سفارش 1pc
قیمت negotiation
جزئیات بسته بندی Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
زمان تحویل 3-7 روز کاری پس از دریافت پرداخت خود را
شرایط پرداخت T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره،
قابلیت ارائه 1000 مجموعه / ماه

Contact me for free samples and coupons.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
جزئیات محصول
محل منبع شنژن، چین نام کنترل دسترسی 110 / 220 ولت درب مانع خودرو بازوی بازوی پارکینگ
زمان باز / بسته شدن 0.6s/1s/1.8s/3s/6s بعد مسکن 280 * 240 * 996 میلی متر
مواد ورق فولادی رول سرد 2 میلی متری نحوه ارتباط RS485
IP 54
برجسته

سیستم مدیریت پارکینگ خودرو

,

موانع امنیتی و دروازه‌ها

,

دروازه مانع خودرو 110 ولت

پیام بگذارید
توضیحات محصول

Access Control 110 / 220V Vehicle Barrier Gate Parking Barrier Arm Gate



What is the davantages of Wonsun barriers?



1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.

2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.

3. It is running without arm-shaking.

4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.

5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.

6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.

7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.

8. Barrier gae tcan be chosen from 1m to 6m.




Model Selection and Differences

Boom type Boom Length(L) Diameter of the spring(mm) Note
Straight boom 6M≥L≥5M 5.5/4.5
  5M≥L≥4.5M 5.5 Dispatching 4.5
  4.5M≥L≥3M 4.5 Dispatching 4.5
Straight boom adhesive tape 5M≥L≥4M 4.5M≥L≥3M 5.5/4.5 Dispatching 4.5
  4M≥L≥3M 3.5M≥L≥3M 4.5 Dispatching 4.5
Folding boom 6M≥L≥5M 6.5/4.5
  5M≥L≥4M 5.5/4.5
  4M≥L≥3M 4.5
  Two fence boom 5M≥L≥4M 6.5/5.5
Fence boom   4M≥L≥3M 5.5/4.5
  Three fence boom 4M≥L≥3M 6.5/5.5
    3M≥L≥2M 5.5/4.5






Specifications



Model

DZTP-128-B

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP54



Why choose us?


1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining  authority of this product instruction and service article belong to the production factory.


Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?

A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
