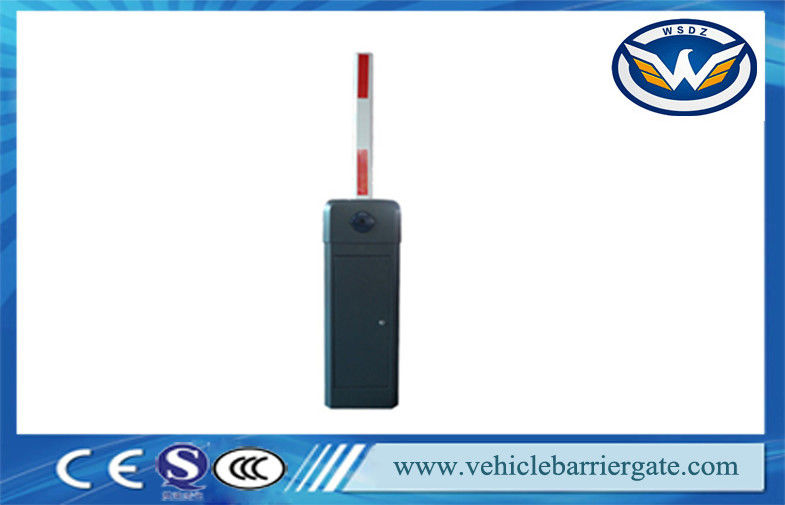

Black Highway Automatic Barrier Gate For Vehicle Access Control CE

Product Details

Place of Origin: China

نام تجاری: WONSUN

گواهی: CE, ISO, SGS

Model Number: WSTP-115

Payment & Shipping Terms

مقدار حداقل تعداد سفارش: 1pc

قیمت: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

زمان تحویل: 3-7 روز کاری پس از دریافت پرداخت خود را

شرایط پرداخت: T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره،

قابلیت ارائه: 1000 مجموعه / ماه

بهترین قیمت رو بدست بیار
حالا تماس بگیرید
Specifications
برجسته:

,

,

auto barrier gate

Color::
yellow, orange, blue, customized optional
Material::
2.00mm Cold Roll Plate Or Galvanized Plate
Features::
Heavy duty, manual release, swing out, remote control
Direction::
Left or right
Speed::
0.6s, 1s, 1.8s, 3s, 6s
Boom Barrier Gate used for:
Parking lots, Toll System, Airport, Hotel, Residential
Color::
yellow, orange, blue, customized optional
Material::
2.00mm Cold Roll Plate Or Galvanized Plate
Features::
Heavy duty, manual release, swing out, remote control
Direction::
Left or right
Speed::
0.6s, 1s, 1.8s, 3s, 6s
Boom Barrier Gate used for:
Parking lots, Toll System, Airport, Hotel, Residential
Description
Black Highway Automatic Barrier Gate For Vehicle Access Control CE

Black Highway Automatic Barrier Gate For Vehicle Access Control CE


Specifications:



Model



WSTP-115  (WONSUN 1st generation machine core)

Power



80w

Material



Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading

Running Time



0.6s, 1s, 1.8s, 3s, 6s

Operating Temperature



-45°C to 75°C

Voltage:



220V ± 10%, 110V ± 10%

Relative Humidity



<90% coagulation free

Motor speed



30r/min

Boom length



Max 6 meters

Net weight:



50Kg

MCBF



≥5, 000, 000 times

Housing Size



320*280*935mm

Traffic light



Optional

Rail material



Aluminum Alloy

Boom Type



Straight arm: Mar 1- 6 meters optional, size 45×100mm  aluminum alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6  meters, aluminum alloy

Related accessories



infrared sensors, loop detectors,traffic light, UHF readers

Application



Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block

Advantages



1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems

Our other products



WONSUN has other products: tripod turnstiles,  sliding gate motor,

flap barrier,swing gate motor,

pedestrian access control turnstiles and barriers,
and other related accessories.






Functions & Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)





Model

Boom Shape

Max Boom Length

Speed

WST1151

Straight boom

6m

6 seconds

WST1152

Straight boom

4.5m

3 seconds

WST11521

90 degree, Articulated boom

5m

6 seconds

WST11522

90 degree, Articulated boom

3m

3 seconds

WST11561

180 degree, Articulated boom

5m

6 seconds

WST11562

180 degree, Articulated boom

3m

3 seconds

WST11581 Two fence boom 4.5m 3s and 6s
WST11582 Three fence boom 4.5m 3s and 6s



































Vehicle Barrier Gate  Kit

1 * motor
1 * boom (from 1m to 6m can customised)
1 * control panel
2 * remote controllers





Parking & Shipping:


Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole






FAQ:



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.



5. How long will your gate barrier working?

 Gate barrier life span is 5-10 years.



6. What should we do if there have problems during using?

 My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or

call me! We will provide our best professional service for you.



7.How to import your machines?

* We will prepare gate barrier and shipment for you after payment;

*We will give you bill of loading after gate barrier depart our shipping port;

*Our shipping agent will contact you when gate barrier arrival
