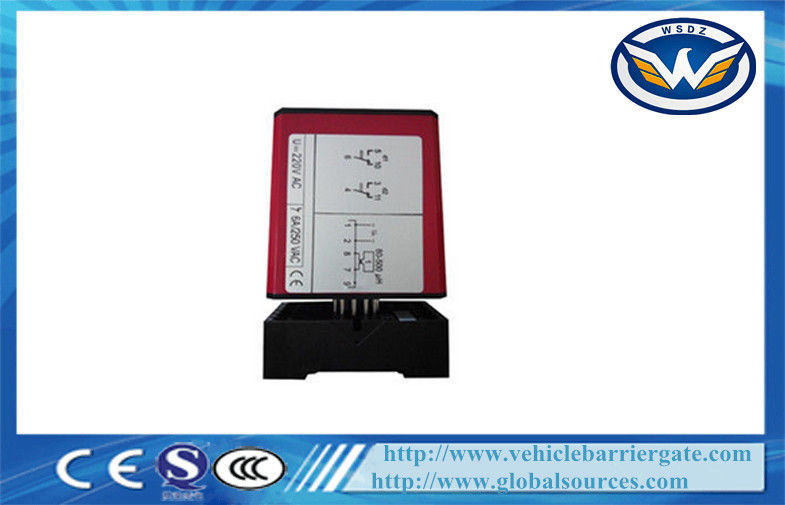

Double - Channel Vehicle Detection Loop For Car Parking Barrier Gate System
| Place of Origin | China |
|---|---|
| نام تجاری | WONSUN |
| گواهی | CE |
| Model Number | WSTV-410 |
| مقدار حداقل تعداد سفارش | 1pc |
| قیمت | nEGOTIATE |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| زمان تحویل | 3-7 روز کاری پس از دریافت پرداخت خود را |
| شرایط پرداخت | T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره، |
| قابلیت ارائه | 1000 مجموعه / ماه |
Contact me for free samples and coupons.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xجزئیات محصول
| Supply voltage | 220V AC , 115V AC,24VDC/AC,12V DC/AC | Frequency range | 20 kHz to 170 kHz |
|---|---|---|---|
| Storage temperature | -40°C to +85°C | Power Consumption | 4.5VA |
| Output relays | 240V/5A | Voltage tolerance DC | ±15% |
| برجسته | loop vehicle detector,vehicle detection loop,vehicle detection loop |
||
توضیحات محصول
Double-channel loop detector wholesale for car parking barrier gate system
Quick Detail:
vehicle loop detector
Double channel inductive loop detectorsl
Use in car parking system..and so on
Adjustable in 3 increments (high. Medium. Low).
Application
Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.
The WSTV-410 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
Features:
Single channel inductive loop detectors
Principle is based on change in inductance within loop which is caused by metallic components of passing vehicles
Changes are picked up and evaluated by a microprocessor, easy to use due to automatic calibration when operating voltage is applied
Used wherever vehicles have to be detected, like monitoring and safe guarding access ways for counting vehicles
Output signal can be used for controlling door and gate drive mechanisms, road barriers, controlling traffic light systems in car parks or activating card dispensers in car parks
Specification:
| Supply voltage AC | 220V, 110V, 24V, 12V |
| Supply voltage DC | 24V, 12V |
| Sensitivity | adjustable in 3 increments (high .medium. low) |
| Operating temperature | -20°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Frequency range | 20 kHz to 170 kHz |
| Reaction time | 100ms |
| Loop inductance | Ideal:80μH to 300μH |
| (incl. conn. wiring) | max:50μH to500μH |
| Loop connection | <5m optimal |
| Loop connection wiring | Maximum length 200 meters |
| Twisted at least 20 times per meter | |
| Dimensions | 36 x74x85 mm |
