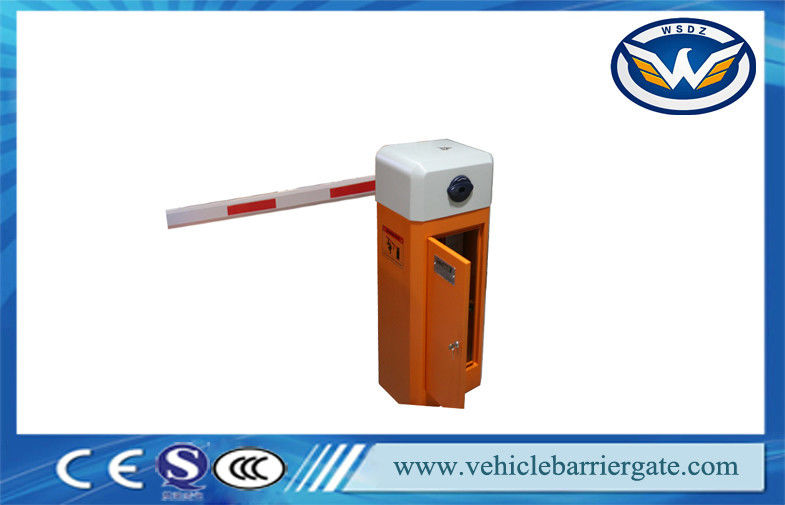

Intelligent Parking Lot Barrier With Integrated RFID Gate Automation
| Place of Origin | China |
|---|---|
| نام تجاری | WONSUN |
| گواهی | CE, ISO, SGS |
| Model Number | WSTP-115 |
| مقدار حداقل تعداد سفارش | 1pc |
| قیمت | negotiation |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| زمان تحویل | 3-7 روز کاری پس از دریافت پرداخت خود را |
| شرایط پرداخت | T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره، |
| قابلیت ارائه | 1000 مجموعه / ماه |
Contact me for free samples and coupons.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xجزئیات محصول
| Operation Time | 0.6s, 1s, 1.8s, 3s, 6s, Optional | Housing Material | 2mm Cold Roll Plate Or Galvanized Plate |
|---|---|---|---|
| Product name | Intelligent Parking Barrier With Integrated RFID Gate Automation | Color | yellow, Orange, Black, Blue, customize optional |
| Arm Length | 0.6s with 2.5m, 1s with 3m, 1.8s with 3.5m, 3s with 4.5m, 6s with 6m | Arm material | Aluminum alloy |
| برجسته | ,,traffic barrier gate |
||
توضیحات محصول
Intelligent Parking Barrier With Integrated RFID Gate Automation
WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE
IF INTEREST, PLEASE CONTACT ME FREELY
SKYPE: zimin1314
Whatsapp: +86 18507481610
Quick details:
1) Beam length: <=6m
2) Opening (Closing) time: 1s, 1.8s,3s, 6s
3) Machine core working temperature: -40 degrees to +75 degrees
4) Electric working temperature: -20 degrees to +75 degrees
5) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
6) Rated power: 120W
7) Relative humidity: <=90%
8) Remote control distance: <=30m
9) Net weight: 55KGS
10) Package size: 1025*375*470mm
Functions:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle,Auto-closing
7) Support the INFRARER PHTOCELL for anti-bumping function (optional)
8) Support the external and internal VEHICLE LOOP DETECTOR (optional)
9) Traffic light interface
10) Wire control (switch signal)/ Remote control (418MHZ)
11) RS485 communication module (optional)
Adavantages:
1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.
2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.
3. It is running without arm-shaking.
4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.
6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.
7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.
8. Barrier gae tcan be chosen from 1m to 6m.
Each package will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
1 pair photocell( optional)
1 loop detector( optional)
1 RS485( optional)
Service items
1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
