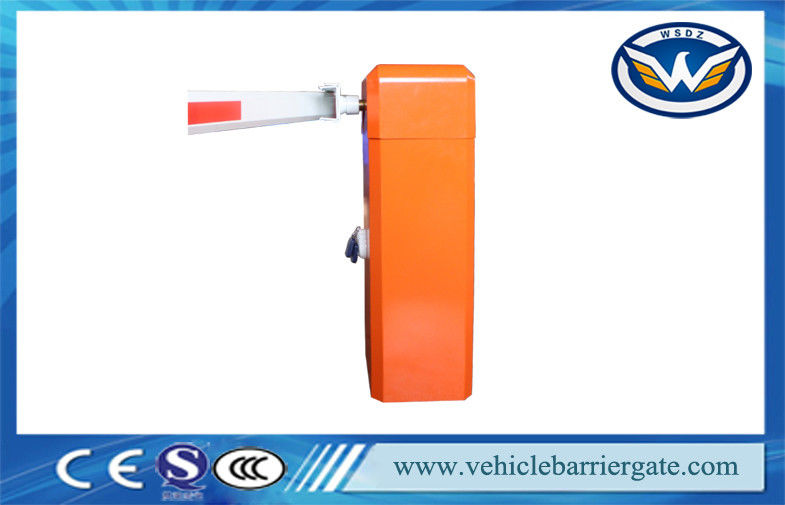

Automatic Straight Boom Barrier Gate With Arm Auto Reverse Parking Lot Barrier
| Place of Origin | China |
|---|---|
| نام تجاری | WONSUN |
| گواهی | CE, ISO, SGS |
| Model Number | WSTP-115 |
| مقدار حداقل تعداد سفارش | 1pc |
| قیمت | negotiation |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| زمان تحویل | 3-7 روز کاری پس از دریافت پرداخت خود را |
| شرایط پرداخت | T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره، |
| قابلیت ارائه | 1000 مجموعه / ماه |
Contact me for free samples and coupons.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xجزئیات محصول
| Product name | Automatic Straight Boom Barrier Gate With Arm Auto Reverse Parking Lot Barrier | Color | yellow, Orange, Black, Blue, customize optional |
|---|---|---|---|
| OEM/ODM | Supported | Operation Time | 0.6s, 1s, 1.8s, 3s, 6s, Optional |
| Model Number | WSTP-115 automatic barrier gate | Brand Name | WONSUN |
| برجسته | ,,auto barrier gate |
||
توضیحات محصول
Intelligent Retractable Fence Gate Vehicle Barrier Gate With Swing Out
Quick details:
| Model | WSTP-115 |
| Size | 320*280*935 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
|
Remote Control Distance
|
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
Arm Optional:
1. Straight boom arm length is 1-6 m, Speed time is 6s
2. Straight boom arm length is 1-3.5m. Speed time is 1.8s
3. Straight boom arm length is 1-3 m, Speed time is 1s
4. Straight boom arm length is 1-2.5m, Speed time is 0.6s
Arm Type:
1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm
Adavantages:
1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.
2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.
3. It is running without arm-shaking.
4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.
6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can
control the warming of the motor, makes the motor not burned easily.
7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the
problems caused by using traditional magnetic switch which is easily interfered by the external environment.
8. Barrier gate can be chosen from 1m to 6m.
Parking List:
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
Comunicate with customer:
|
1. Are you manufacturer or trade company? We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007. |
|
2. What is your MOQ? As for usual order, there is no MOQ; For OEM order, at least 30 sets. |
|
3. What is your delivery time? As for usual order, it is 3-5 days after received your payment with 50 sets order quantity. For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity. |
|
4. What is the terms of payment? 30%-40% advance deposite, 60%-70% balance before shipment for large quantity. |
|
5. How long will your gate barrier working? Gate barrier life span is 5-10 years. |
|
6. What should we do if there have problems during using? My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or call me! We will provide our best professional service for you. |
|
7.How to import your machines? * We will prepare gate barrier and shipment for you after payment; * We will give you bill of loading after gate barrier depart our shipping port; * Our shipping agent will contact you when gate barrier arrival |
Company information:
With WONSUN, your job gets easier.
As for our company, established at 2008, with more than 7 years OEM/ODM experience, with 2 technicists,
3 QC for quality control, daily production of 80 sets of barrier for usual modules.
We can accept any OEM/ODM order of barrier gate, which has high quality and competitive price.
