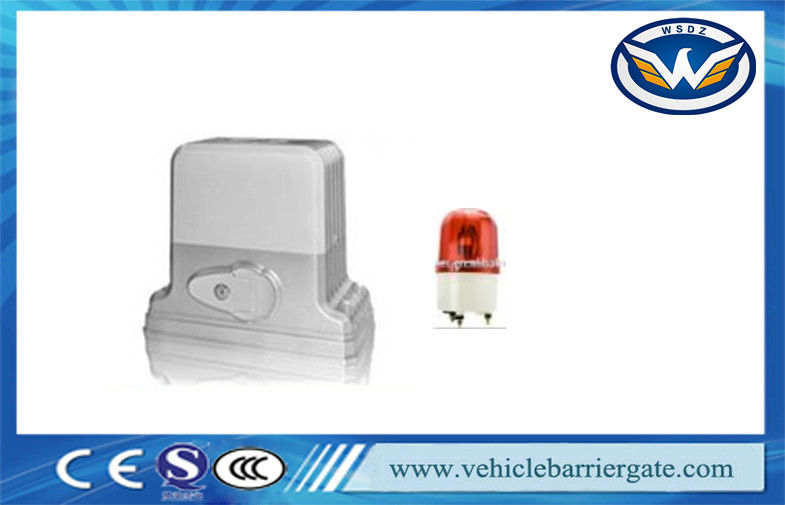

Remote Control Automatic Sliding Gate Motor For Residential Or Commercial
Place of Origin | China |
---|---|
نام تجاری | WONSUN |
گواهی | CE,ISO,SGS |
Model Number | WSTP-102 |
مقدار حداقل تعداد سفارش | 1pc |
قیمت | negotiable |
جزئیات بسته بندی | در قرار دادن حباب بسته بندی شده در مرحله اول و سپس مقوا را برای بسته بندی بیرونی تقویت شده. |
زمان تحویل | 3-7 روز کاری پس از دریافت پرداخت خود را |
شرایط پرداخت | T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره، |
قابلیت ارائه | 1000 مجموعه / ماه |
Contact me for free samples and coupons.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Remote Control Automatic Sliding Gate Motor For Residential Or Commercial Use | Power supply | AC220V/110±10% |
---|---|---|---|
Frequency | 50/60HZ | Rated power | 350w |
Max load weight | 1800KGS | Open/Closed speed | V=12m/min |
Working temperature of motor | -25 To +55 Celsius Degree | Place of origin | Shenzhen,China |
Keywords | automatic sliding gtae motor | ||
برجسته | ,,security barriers and gates |
Remote Control Automatic Sliding Gate Motor For Residential Or Commercial
automatic gate motor description
- Power supply range:AC220/110V±10% 50/60HZ
- Net weight 8.5 kg
- Max loading weight:1800kg
- Working temperature of motor:-25 to +55 Celsius degree
- Working humidity:≤85%
- Rated Power:200W
- Output gear module:M=4
- Output gear number:Z=16
- Open(close) speed:v=12m/min
- Maxinum pull:1100N
- Package one set in one carton
Product display:
Each kits includes:
- 1 x motor
- 2 x remote controllers
- 1 x control panel
- 1 x base plate
- 2 x magnets
- 1 x user's manual
Functions and features of sliding gate motor:
1) Integrated machanical and electrical,all functions on one controller
2) Radio controller or lines to control open,close and stop functions
3) Magnetic limit switch,the door stops when it moves to the limit
4) Accurate lomit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation- if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop keystroke
9) Movement indication - the indicator lights up when the door is moving
10) Optional line control or remote cotrol
- Guarantee time:1 year
- Delivery deadline: 8 days delivery after receive your payment
- Package: 1 set in a standard carton packing
- Mininum order
automatic gate motor Packaging& Shipping
Packing list | |||
Name | Quantity | Unit | Remark |
Sliding gate operator | 1 | set | necessary |
Remote control | 2 | pcs | necessary |
Internal hexangular bolt | 4 | pcs | M8*40 |
Internal hexanhular bolt | 4 | pcs | M6*16 |
Left limit iron | 1 | pcs | necessary |
Right limit iron | 1 | pcs | necessary |
Base board | 1 | pcs | necessary |
Release key | 2 | pcs | necessary |
Manual | 1 | pcs | necessary |
Infrared photocell | 1 | set | Optional |
Radio emitter | 1 | set | optional |
automatic gate motor FAQ:
Communication with customers:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
