Heavy Duty Traffic Road Nice Boom Barrier For Parking System , Low Noise

Place of Origin China
نام تجاری WONSUN
گواهی CE
Model Number WSTP-126
مقدار حداقل تعداد سفارش 1pc
قیمت 280usd
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
زمان تحویل 3-7 روز کاری پس از دریافت پرداخت خود را
شرایط پرداخت T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره،
قابلیت ارائه 1000 مجموعه / ماه

Contact me for free samples and coupons.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
جزئیات محصول
Product name Heavy Duty Automatic Barrier Gate Traffic Road Barrier Gate For Parking System CE certificate Yes
Open / close time 0.6s, 1s, 1.8s, 3s, 6s Arm type Straight arm, folding arm, fence arm, optional
Housing material 2.0mm cold roller steel plate Power supply AC 220V / 110V
برجسته

,

,

car park barrier gate

پیام بگذارید
توضیحات محصول

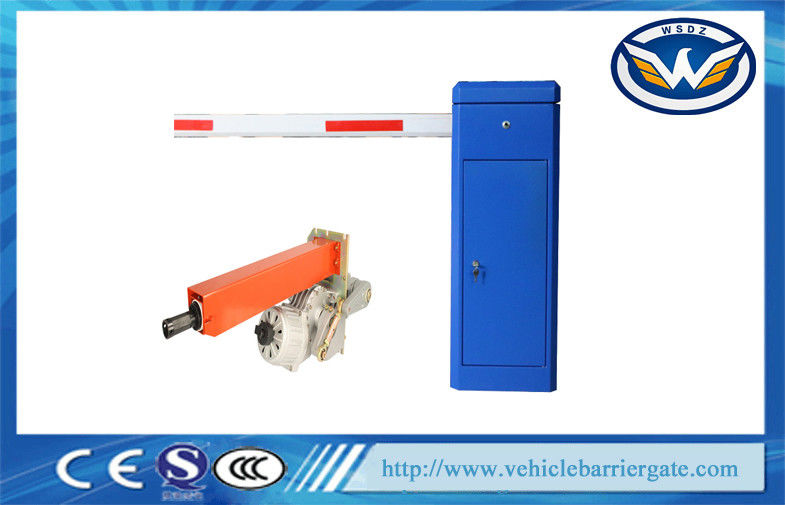

Heavy Duty Traffic Road Nice Boom Barrier For Parking System , Low Noise





1. Automatic barrier gate quick details:



1. Straight arm , folding arm , fence arm optional
2. The fastest landing gear speed 0.6S ; 1S, 3S , 6S Customized
3. Use of intelligent, precision manufacturing, advanced waterproof structure and spraying process.
4. Unique design of barrier gate's core
5. With intelligent self-test, open priority protection, preventing damage to vehicles protection, blocking protection, self-locking function limit position.





2. Basic features:



1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)





3. Technical data:



1) Beam length: <=6m

2) Opening (Closing) time: 1.8s, 3s, 6s

3) Machine core working temperature: -40 degrees to +75 degrees

4) Electric working temperature: -20 degrees to +75 degrees

5) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

6) Rated power: 120W

7) Relative humidity: <=90%

8) Remote control distance:<=100m

9) Net weight: 52KG





4. Optional arm type:



a) Straight arm- suitable for broad area without height limitation

b) Folding arm- suitable for the place with height limitation such as underground parking lot

c) Fence arm- suitable for the place with the ban of animals.

1. Straight up to 6M in general, can be customized.

2. If the straight arm is too long, easy to bend and deformation during transport, and air express requirements of arm length can not exceed 3M, telescopic arm generally consists of two sections, each section of the 3M, the maximum can be extended to 6M.
3. The maximum length of the fence typ is 4.5M
4. Folding type up to 5M, in general use of underground garage, can be customized.





5. Accessories lists:


1. Wireless remote control, wire push button
2. The key of the cabinet door
3. The retaining bar clamp
4. Secure the pressure plate
5. Fixing screws
6. Barrier arms
