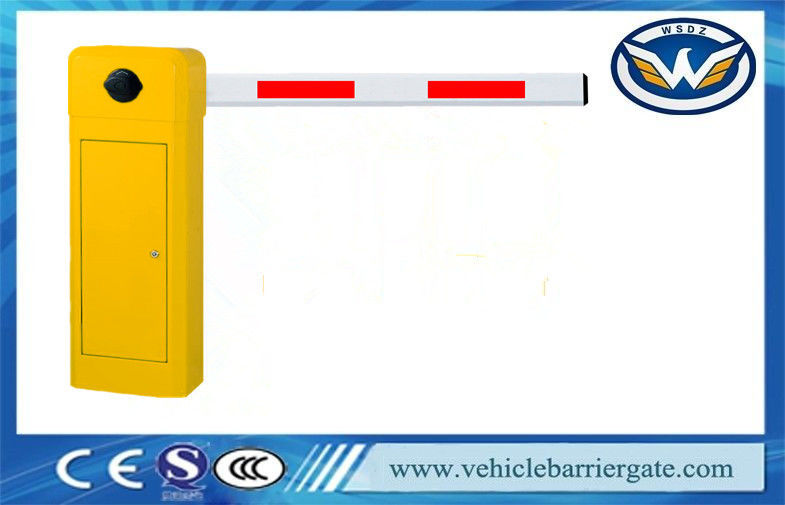

Intelligent Car Park Barrier System , Electric Barrier Gate Straight / Folding / Fence
| Place of Origin | China |
|---|---|
| نام تجاری | WONSUN |
| گواهی | CE, ISO, SGS |
| Model Number | WSTP-115 |
| مقدار حداقل تعداد سفارش | 1pc |
| قیمت | Negotiation |
| جزئیات بسته بندی | در قرار دادن حباب بسته بندی شده در مرحله اول و سپس مقوا را برای بسته بندی بیرونی تقویت شده. |
| زمان تحویل | 3-7 روز کاری پس از دریافت پرداخت خود را |
| شرایط پرداخت | T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره، |
| قابلیت ارائه | 1000 مجموعه / ماه |
Contact me for free samples and coupons.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xجزئیات محصول
| Material | 2mm Cold Roll Plate Or Galvanized Plate | Color | Red/Blue/Yellow/Orange/ Customized |
|---|---|---|---|
| Operation Time | 0.6s/0.8s/1s/1.8s/3s/6s | Waterproof Rate | IP54 |
| Working Temperature | -45°C to 75°C | Model Number | WSTP-115 |
| برجسته | ,,security boom gate |
||
توضیحات محصول
Intelligent Car Park Barrier System , Electric Barrier Gate Straight / Folding / Fence
Functions and Features:
1.The humanized cluth device:In case of power off,unlock the clutch device and raise the boom manually.By the time the power is supplied, lock the clutch device to make it working normally again.
2.Special spring device. Both th compression spring and tension spring can be used in the machine. Using the compression spring can avoid accidents caused by the tension spring.
3.Three control button: for boom raising, falling and pausing.
4,Boom backtrack function: the boom wil rise if it hits something when falling
5.Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed
6.Both external and internal loop detectors are supported
7.'Open','Clsoe',and 'Stop' controling interfaces
8.RS-485 communication serial interface.(optional)
9.Traffic light signal connection device: red light for stop; green light for pass
10.Remote control and wire control selection
Technical Data:
| Model number: | WSTP-115 |
| Power: | 80W |
| Working environments: | indoor, outdoor |
| Voltage: | 220V ± 10%, 110V ± 10% |
| Relative Humidity | <90% coagulation free |
| Motor speed: | 30r/min |
| Boom length | Max 6 meters |
| Net weight: | 50KG |
| Housing Size | 320*280*920 |
| Arm Type |
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block |
Fences(optional):
Service items:
1. One year's free servicing is supplied (not including the arm)
2.Lifetime charged servicing is offered
3.Technology servicling is supplied
The following situations are charged for servicing (or changing)
1.Broken by wrong installation
2.Broken by improper voltage
3.The surfaces of the system destroyed by wrong installation or use
4. Broken by natural disaster
5. Overdue
6. Servicing items out of promises
Any problem about product please not hesitate to contact me, I will reply within 5 minutes 8:00-23:00(Chinese time)
