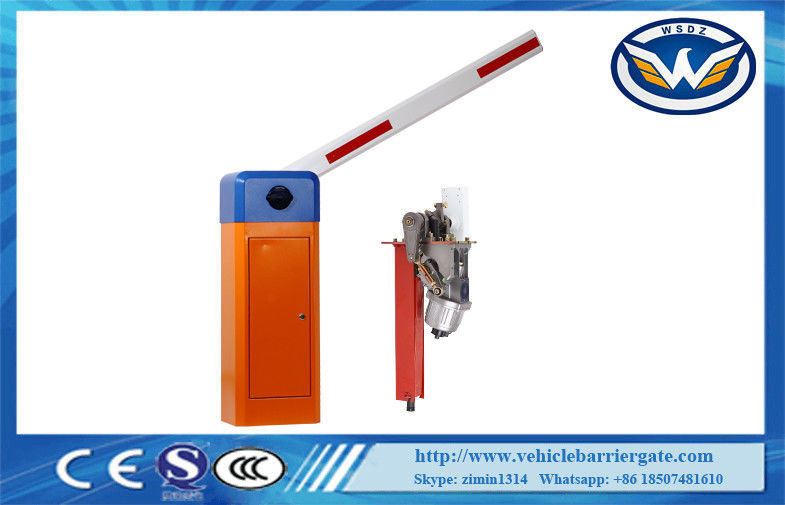

Heavy Duty Security Arm Parking Barrier Gate for Access Control

  • Heavy Duty Security Arm Parking Barrier Gate for Access Control
  • Heavy Duty Security Arm Parking Barrier Gate for Access Control
محل منبع China
نام تجاری WONSUN
گواهی CE, ISO, SGS
شماره مدل WSTP-115
مقدار حداقل تعداد سفارش 1pc
قیمت negotiation
جزئیات بسته بندی Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
زمان تحویل 3-7 روز کاری پس از دریافت پرداخت خود را
شرایط پرداخت T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره،
قابلیت ارائه 1000 مجموعه / ماه

Contact me for free samples and coupons.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
جزئیات محصول
Power Supply AC 220±10%, 110±10% 50/60HZ Working temperature -40°to 75°
Color yellow, orange, blue, customized optional Material 2mm Cold Roll Plate Or Galvanized Plate
Name Heavy Duty Security Arm Parking Automatic Barrier Gate for Access Control intensive use heavy duty
برجسته

,

,

car park barrier gate
پیام بگذارید
توضیحات محصول



Heavy Duty Security Arm Parking Barrier Gate for Access Control





Technical Data

1. WSTP-115B

2.Running time: 0.6S, 1S, 1.8S, 3s, 6s

3.Boom type: straight

4.Max Boom length: 4.5m, 6m

5.Boom dimension (WxH): 45x80mm

6.Boom weight: 4.5kg, 6kg

7.Voltage: 220V ± 10%, 110V ± 10%

8.Frequency: 50/60Hz

9.Motor voltage: 220V

10.Power: 120W

11.Working temperature: -40~75




Specifications:



Running time 1sec 3 sec 6sec 3 sec 6 sec 3 sec 6sec 6 sec 6 sec
Boom type straight 90 degree folding 180 degree folding 2 fencing 3 fencing
Max boom length 3m 4.5m 6m 3m 5m 3m 5m 4.5m 4m
Boom dimension(w*h) 40*80mm 45*100mm
Boom weight 3kg 4.5kg 6kg 6.5kg 8kg 9kg 11kg 7kg 7.5kg
Voltage 220V±10%, 110V±10%
Frequency 50/60 Hz
Motor voltage 220V
power 120W
Working temperature

-35centigrade +75centigrade

Protection grade

IP44





Functions & Features



1) Manual release

2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3) Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of heat-protection

5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6) Reversing on obstacle

Heavy Duty Security Arm Parking Barrier Gate for Access Control 0

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

Heavy Duty Security Arm Parking Barrier Gate for Access Control 1

10) Traffic light interface

11) Wire control (switch signal)/ Remote control (418MHZ)

12) RS485 communication module (optional)





FAQ:



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.



5. How long will your gate barrier working?

 Gate barrier life span is 5-10 years.
