Folding security Automatic Boom Barrier Gate For Underground Parking System

محل منبع China
نام تجاری WONSUN
گواهی CE, ISO, SGS
شماره مدل WSTP-115B
مقدار حداقل تعداد سفارش 1pc
قیمت negotiation
جزئیات بسته بندی Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
زمان تحویل 3-7 روز کاری پس از دریافت پرداخت خود را
شرایط پرداخت T / T، Western Union، Money Gram، تضمین تجارت Alibaba، Paypal و غیره،
قابلیت ارائه 1000 مجموعه / ماه

Contact me for free samples and coupons.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
جزئیات محصول
Working temperature -40°to 75° RS485 YES
Force heavy duty arm type folding arm
Power Supply AC 220±10%, 110±10% 50/60HZ Color yellow, orange, blue, customized optional
برجسته

,

,

electric boom barrier

پیام بگذارید
توضیحات محصول

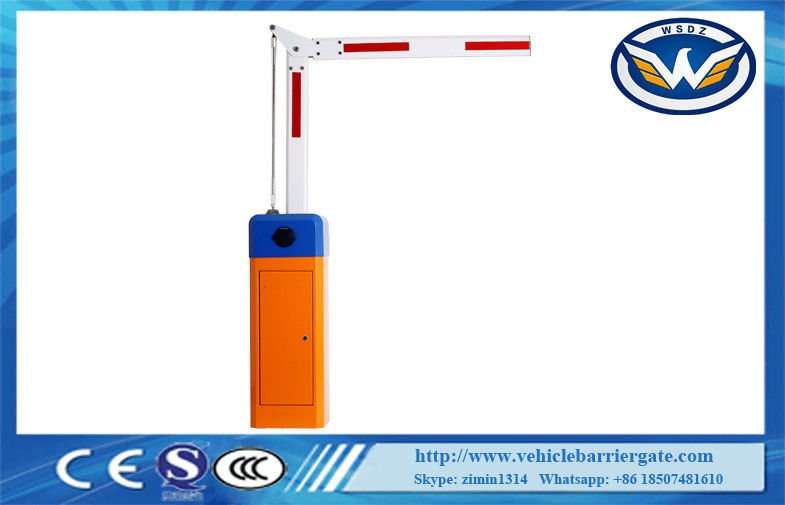

Folding Automatic Boom Barrier Gate For Underground Parking System





Why to choose WONSUN Barrier Gate with rubber on boom?



1.WSTP-115B Barrier Gate adopts the latest mold casting design. Its machine core adopts connecting

rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

2. WSTP-115B Barrier Gate uses the FIRST generation motor. It is stable and has long service life performance, running 5 million times.

Its housing is made of galvanized steel with 2.0mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction.

The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.

4. WONSUN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Specifications:



Automatic boom barrier:
1.automatic and Intelligent
2.silent,heavy duty,steady, durable
3.vehicle or pedestrian control



Application:



Traffic access control for parking lots, toll gate, goods yard, railway crossing, commercial premise, apartment block access and so on.





Technical Data:



Mode: WSTP-115B

Running time: 0.6,1s, 1.8s,3s, 6s

Boom type: straight

Max Boom length: 3m, 4.5m, 6m

Boom dimension (WxH): 45x80mm

Boom weight: 3kg, 4.5kg, 6kg

Voltage: 220V ± 10%,110V ± 10%

Frequency: 50/60Hz

Motor voltage: 220V

Power: 120W

Working temperature: -40~75

Protection grade: IP54





Basic Features:



1. By-security. The barrier gate will automatically reverse when meeting obstacles during closing.

2. AC motor is more powerful and no maintenance.

3. Barrier Beam/arm can be chosen from 3 meters to 6 meters

4. closing time is also arranged from 1 second to 6 seconds.

5. Installation Direction of the boom can be chosen——right-installed or left-installed

6. All the operation process is soft without any noise and shaking.

7. Infrared photocell interface, Loop detector interface and IC system

8. interface are reserved for the other functions.





Advanced Features:



1. Clutch key can be used to open the clutch when power off.

2. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3. Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.

4. Thimble type motor worm design for preventing plugging up in using.

5. Balance spring no noise and easy adjusting design

6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.





Technical Data:



1) Beam length: <=6m

2) Opening (Closing) time: 0.6s,1s,1.8s, 3s, 6s

3) Center height: 0.83m

4) working temperature: -40 degrees to +75 degrees

6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7) Rated power: 120W

8) Relative humidity: <=90%

9) Remote control distance: >=30m

10) Net weight: 52KGS

11) Protection grade: IP54





OEM Service:



The orginal color of this model is orange. However we also provide color option for you according to your own need.





Communication with customers:



Q: What's WONSUN monthly production capacity for barrier gate?

A: 1500 units.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to

last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



Q: What’s the remote control distance?

A: In general, most of WONSUN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate

from 100 meters away. WONSUN recommends using the remote control within 30 meters or 50 meters.
