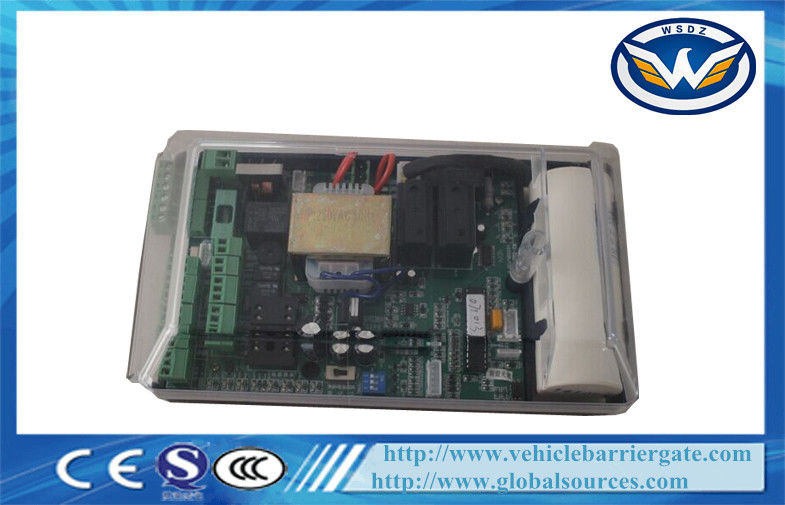

Multifunction Control Board Barrier Gate Control Panel For Access Control

جزئیات محصول

Place of Origin: China

نام تجاری: WONSUN

گواهی: CE, ISO, SGS

Model Number: WSCB-01

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1pc

قیمت: قابل مذاکره

جزئیات بسته بندی: در قرار دادن حباب بسته بندی شده در مرحله اول و سپس مقوا را برای بسته بندی بیرونی تقویت شده.

زمان تحویل: 3-7 روز کاری پس از دریافت پرداخت خود را

شرایط پرداخت: T / T، Western Union، Money Gram، تضمین تجارت ، Paypal و غیره،

قابلیت ارائه: 1000 مجموعه / ماه

بهترین قیمت رو بدست بیار
حالا تماس بگیرید
مشخصات
برجسته کردن:

,

,

parking lot arm

Name:
Automatic Boom Barrier Controller Panel For Access Control Barrier Gate
Usage:
Barrier gate
Weight::
800g
Feature::
Multifunction
Type::
Control Panel
Rating Voltage::
AC 220V/110V
Name:
Automatic Boom Barrier Controller Panel For Access Control Barrier Gate
Usage:
Barrier gate
Weight::
800g
Feature::
Multifunction
Type::
Control Panel
Rating Voltage::
AC 220V/110V
توضیحات
Multifunction Control Board Barrier Gate Control Panel For Access Control

Multifunction Control Board Barrier Gate Control Panel For Access Control





Specification:



Running time 0.6,1s, 1.8s 3s 6s
Boom type straight
Max boom length 3m 4.5m 6m

Voltage



AC 220V/110V

Frequency



50/60HZ
Motor voltage AC 220/110V
Power 80W
Working temperature -35℃~+60℃
Protection degree IP44





Quick details:



1.Arm auto Reverse function

2.Aemote control

3.Loop detector interface

4.Delaying when closing





Functions & Features:

1. Open the barrier gate by motor wheel when power off and automatic locking when power on

2. Balanced boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto-reverse when the boom meets obstruction

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Offering dry contact signal for car parking system (COM, NC, NO)

10. Auto-delay when closing (adjustable)

11. Remote control frequency: 315 MHz, 418MHz, 433MHz



Multifunction Control Board Barrier Gate Control Panel For Access Control 0
