جزئیات محصول
Place of Origin: China
نام تجاری: WONSUN
گواهی: CE, ISO, SGS
Model Number: WSTP-115
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 1pc
قیمت: قابل مذاکره
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
زمان تحویل: 3-7 روز کاری پس از دریافت پرداخت خود را
شرایط پرداخت: T / T، Western Union، Money Gram، تضمین تجارت ، Paypal و غیره،
قابلیت ارائه: 1000 مجموعه / ماه
Product name: |
Auto Gate Barrier Car Parking System RS485 Car Park Barriers |
arm type: |
straight articulated, fence |
Arm material:: |
Aluminum alloy |
Frequency:: |
60HZ/50HZ |
Motor power:: |
120W |
Working temperature:: |
-40°to 75° |
Product name: |
Auto Gate Barrier Car Parking System RS485 Car Park Barriers |
arm type: |
straight articulated, fence |
Arm material:: |
Aluminum alloy |
Frequency:: |
60HZ/50HZ |
Motor power:: |
120W |
Working temperature:: |
-40°to 75° |

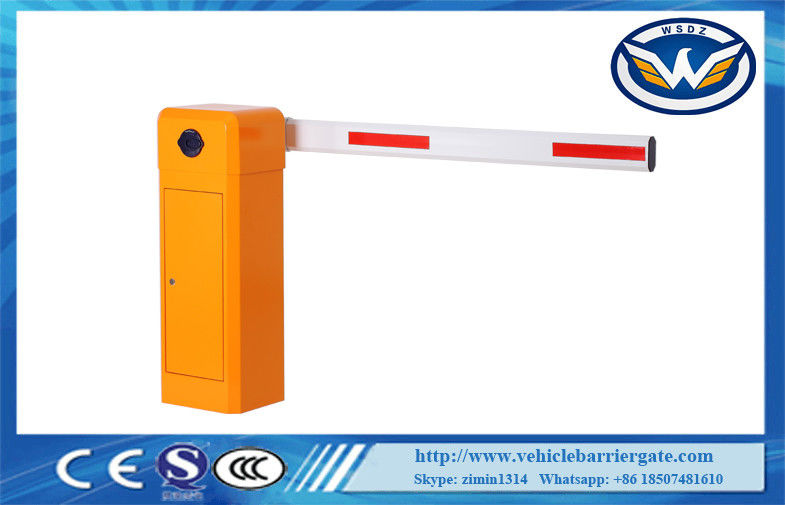

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485
Why WONSUN RS485 Car Park Barriers?
1. One year warranty.
2. Lifetime charged service.
3. OEM/ODM: Customized service accroding to your requirements.
4. Technical support and nice after-sales service.
5. Provide one-stop solution.
6. provides timely email, phone and onsite support.
Technical details:
| Model | WSTP-115B |
| Working Temperature | -40℃~+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Speed | 1S,1.8S, 3S, 6S |
| Max boom length |
6 meters(straight boom) 4.5 meters(2 fence boom) 4 meters(3 fence boom) |
Functions&Features:
AC MOTOR-The Drive Unit1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free |
|
Compressed Balance Spring Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidents caused by tension spring
|
|
Liberate Cushion Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core |
|
Photoelectronic Limit Switch Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely
|
|
Arm Auto Reverse Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle |
|
Swing Out Mechanism
|
|
Clutch Device Clutch key can be unlocked to the clutch when power off, conveniently raise the arm without removing the top cover or body housing |
|
Remote Control Remote control antenna works with remote control push button and remote control units, easily control arm to rise and fall
|
